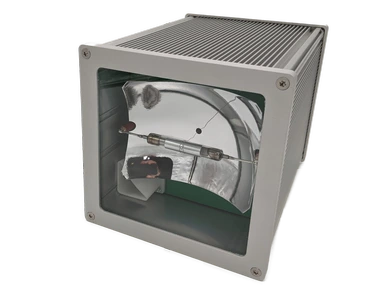

Sx-IP is a versatile IP67 flash device designed for :
- Powerful pulses (up to 60J and more on request…)
- High repetition rate (up to 20Hz)
- Very fast sequences of high-power flashes
- Long lamp lifespan (up to 30 Millions shots)
| Standard beam angles | 12° x 40° 20° x 30° 40° x 70° 50° x 70° 60° x 70° |
|
| On-request beam angles | X | |
| Pulse duration | µs | <500 |
| Default Guide Number at 100 ISO at 20J | f-stop.metre | 25 |
| Max. number of 30J shots in a burst before recharge | – | 9 |
| Maximum repetition rate, 24/24h at 25°C at 2J | Hz | 20 |
| Minimum time between shots | ms | 20 |
| Number of energy levels accessible through triggers | – | 8 |
| Monitoring and Control interface | – | X |
| Energy adjustment interface | – | X |
| Back panel switch for energy adjustment | – | Option |
| Light colour Red or Infrared | – | Option |
| Lampe lifespan | shots | >30M at 6J >1M at 30J >300K at 60J |
| Overall dimensions (l x w x h) with stainless steel casing | mm | 95 x 136 x 185 |
| Supply voltage | V | 10.0 to 30.0 |
| Maximum conversion power @24V | W | 70 |
| Idle consumption | W | < 2 |
| Operating ambient temperature | °C | -20 to +45 |
